AFL2-W19-H61
  Wide 19" AFOLUX GEN II Flat-bezel Panel PC with Project Capacitive Supported
  Date: May 08, 2013


Features Projective Capacitive Type Touch Screen Supported
High Performance With Flexible Power Equipment
IEI's Unique Light Fanless Design LED Light Bar Visual Management
Specifications Ordering Information
Options Packing List
CD-RW/DVD-RW Driver Spec.

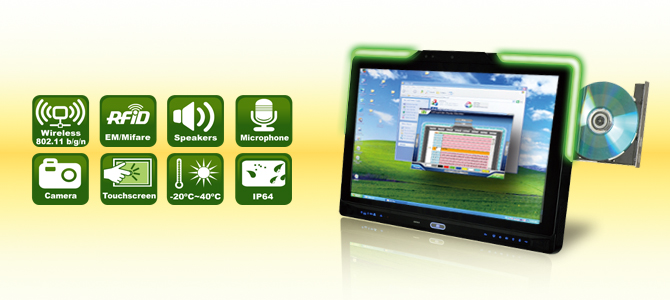

   Features

Programmable colorful LED light bar
Intel® Core™ i5/ i3 and Pentium® processor
Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2)
Projected capacitive touchscreen supported
Wi-Fi 802.11b/g/n 2T2R high speed wireless
EM or Mifare RFID reader
Built-in 2M pixels webcam with AF, AE and AWB capabilities
Built-in two 2W speakers and microphone
IP 64 compliant front panel
Auto dimming control
Light fanless design
Type K thermocouple temperature sensor
Wide range 9~36 VDC input

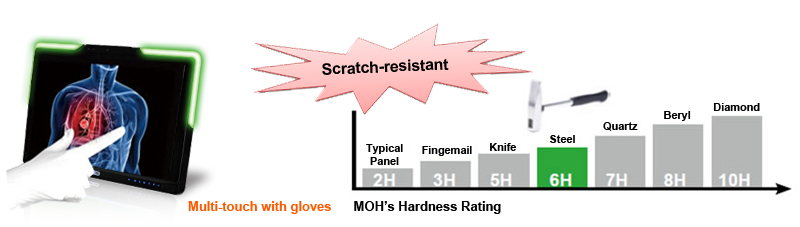

   Projective Capacitive Type Touch Screen Supported





AFL2-W19A-H61 is equipped with a projected capacitive touchscreen, perfectly suited for KIOSK and outdoor digital signage environments with a tempered glass layer. It also supports Windows 7 multi-touch function compatible with glove-wearing users and enhancing ease-of-use.


Type Resistive Capacitive
5-wire Projected capacitive
Input Method Hand or Stylus Hand or Stylus
Glove Yes Yes
Single/Multi-touch Single Multi
Hardness 3H 6H
Transparency 78% 85%



   High Performance With Flexible Power Equipment





Comparing to mobile solution, Intel H61 with desktop CPU provides high performance.

Mobile 2nd Core i3 V.S. Desktop Pentium & 2nd Core i3
CPU Type CPU Performance (CPUMark 99)
Intel 2nd Core i3-2330E
(Mobile 35W CPU)
337
Intel Pentium G620T
(Desktop 35W CPU)
337
Intel 2nd Core i3-2100T
(Desktop 35W CPU)
380

Mobile Celeron V.S. Desktop Celeron
CPU Type CPU Performance (CPUMark 99)
Intel Celeron B810
(Mobile 35W CPU)
245
Intel Celeron G530T
(Desktop 35W CPU)
306
‧Flexible power equipment


   IEI's Unique Light Fanless Design






AFL2-W19A-H61 with highly effective Light Fanless system.  It provides stable fanless running system and strengthens the system protection. Embedded smart sensor can test the ambient temperature automatically, user can supervise the information of CPU and fan speed directly. For example, it can be used in high performance and silent both in need situation, such as: multimedia platform next to patient bedside, gaming, airport kiosk, restaurant ordering system.



   LED Light Bar Visual Management





AFL2-W19A-H61 system embedded effective brightness LED dash board. Each LED IC can be set by the user in multiple functions such as brightness, color, form to be a visual management tool. It can be adapted to product line signal, patient emergency signal in hospital, advertising machine…etc.


   Specifications




Model   AFL2-W19A-H61
LCD Specifications Size W18.9” (16:10)
Resolution 1440 (W) X 900 (H)
Brightness (cd/m²) 250
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.2835 (H) x 0.2835 (V)
Viewing Angle (H-V) 170° / 160°
Backlight MTBF 30,000 (LED backlight)
Touch Touch Screen Projected capacitive type with USB interface
Touch Controller PenMount DMC9000 / EETI EXC7200 & EXC5404
System CPU 2nd/3rd Generation Intel® Core™ i7/i5/i3 and Pentium® processors
Chipset Intel® H61
RAM Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)
Ethernet Realtek RTL8111E PCIe GbE controller supports ASF 2.0
Audio Codec Realtek ALC892 HD audio codec
HDD 2.5" SATA 3Gb/s  HDD bay
CD-ROM 1 x Slim Type CD-ROM bay
Input / Output 2 x RS-232 (DB-9 connector) 1 x Mic (on the left)
1 x RS-422/485 (DB-9 connector) 1 x VGA port (DB-15 connector)
2 x GbE LAN (one on the bottom, one on the left) 1 x HDMI port
2 x USB 3.0 1 x Power switch
3 x USB 2.0 (two on the bottom, one on the left) 1 x AT/ATX switch
1 x Mini USB port on front panel 1 x Reset button
1 x MicroSD card slot on front panel 1 x Clear CMOS button
1 x Line out (on the left) 1 x 9 ~ 36V DC input jack
  1 x Type K connector
Expansion Interface 1 x PCIe Mini slot reserved
Other Features Audio AMP 2W + 2W (internal speaker)
Camera 2 M pixels with low light function
RFID Reader EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader MSR card reader (optional)
TPM Reserved by pin-header
OSD Function LCD on/off, brightness up/down, volume up/down, Hot Key
Ambient Light Sensor Yes
Infrared Remote Controller Yes
LED Light Bar Yes
System Cooling Light fanless (smart fan operates above default temperature setting)
Connectivity Wireless IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
Bluetooth Bluetooth V2.0+EDR with USB interface (optional)
Physical Construction Front Panel PC + ABS Plastic
Mounting Panel, Wall, Stand, Arm VESA 100mm x 100mm
Color Black
Dimensions (mm) 488 (W) x 361 (H) x 65 (D)
Weight (N/G) 7.3 kg / 10 Kg
Environment Operating Temperature (°C)
(Ambient with air flow)
-20°C ~ 40°C
Storage Temperature (°C) -20°C ~ 60°C
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Safety&EMC CE / FCC
Power Power Supply 120W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC
Power Requirement 9 ~ 36 VDC
Power Consumption 19V@5.58A (Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory


   Ordering Information




LED Bar Model Description
LED Bar AFL2-W19A-H61-i5/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
AFL2-W19A-H61-i3/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
AFL2-W19A-H61-P/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
Without
LED Bar
AFL2-W19AB-H61-i5/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
AFL2-W19AB-H61-i3/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
AFL2-W19AB-H61-P/PC-R11
18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 (2GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11


   Options




Item AFL2-19A-H61
Panel Mounting Kit AFL2PK-W19A
Wall Mounting Kit AFLWK-19B
Arm ARM-31-RS
Stand STAND-A19-RS/STAND-A21-R10/STAND-C19-R10/STAND-210-R11
Hybrid Card Reader AFL2P-W19AMSI-U-R10
Magnetic Stripe Reader AFL2P-W19AMSR-U-R10
Slim DVD Burner AFL2-DVD-KIT01-R10
Bluetooth Module Kit AFL2-BT-KIT01-R11
Trusted Platform Module (TPM)
TPM-IN01-R11
EM RFID Reader AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader AFL2-MF-RFID-KIT01-R11
OS: Win XPE (CD-ROM) AFL2-W19A-H61-XPE-R10
OS: Linux (CD-ROM) AFL2-W19A-H61-LNX-R10
OS: Win 7 Embedded (CD-ROM) AFL2-W19A-H61-WES7P-R10 (for Projected Capacitive Touch)


   Packing List




Item P/N Q'ty Description
Utility CD 7B000-000956-RS 1 drivers and user manual
One Key Recovery CD 7B000-000781-RS 1
Power Adapter 63000-FSP120AAB-RS 1 FSP120-AAB, 90~264VAC input, 120Wm, 19VAC outputt
Power Cord 32702-000401-100-RS  1 European, 1500mm
Power Transfer Cord 32000-089400-RS 1
Infrared Remote Controller 7Z000-SLPCB005-RS 1
M3 Screw Pack 44013-030041-RS 4 M3 x 4 for securing HDD
M4 Screw Pack 44033-040061-RS 4 M4 x 4 for VESA screw
I/O Bracket 41013-0290C2-00-RS 1 I/O Bracket
Temperature Sensor Cable 32133-004300-100-RS 1


   CD-RW/DVD-RW Driver Spec.




The drive is able to write CD-R/RW disks, DVD+R/RW disks and DVD-R/RW disks
Drive Type Internal Slim CD-RW/DVD Combo Drive
Data Transfer Rate Write:
DVD+R/DVD+RW/DVD-R: 8X
DVD-RW: 6X
CD-R/CD-RW: 24X
Read:
DVD-ROM: 8X
CD-ROM: 24X
Interface SATA
Buffer Memory 2MB
